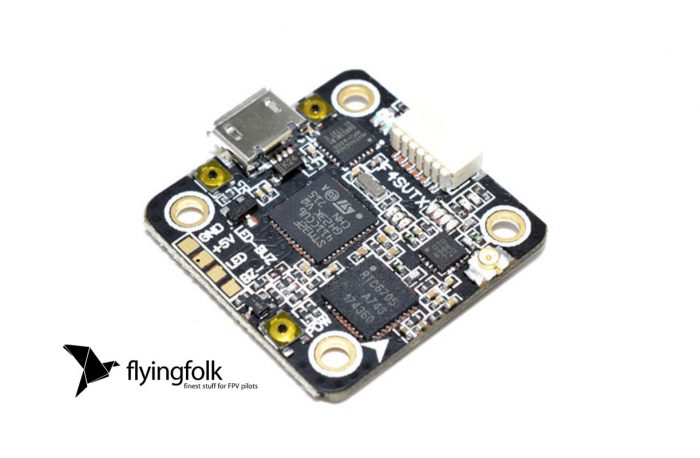

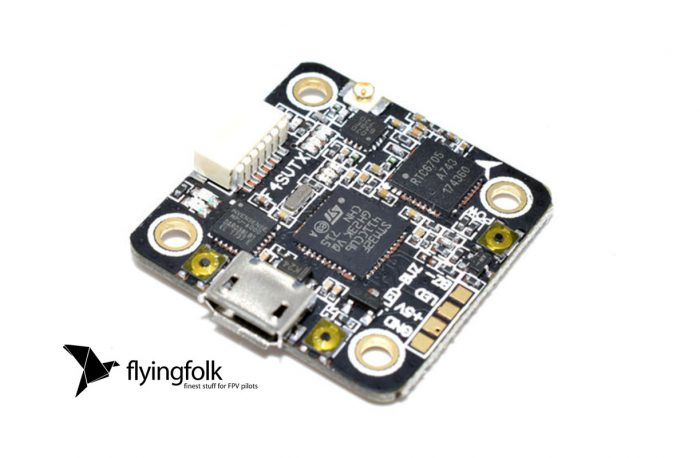

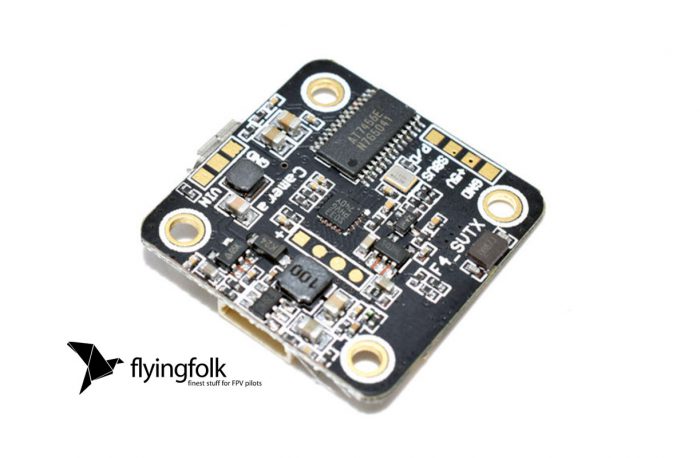

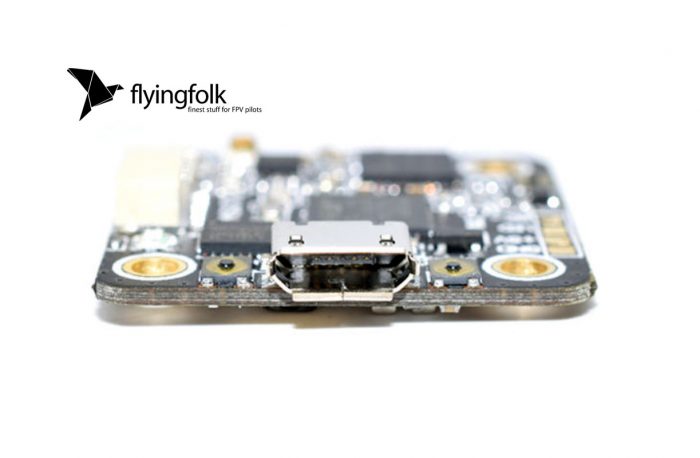

F4 SVTx Flugsteuerung MPU 6000 – mit integriertem VTx

F4 SVTx Flugsteuerung MPU 6000 – mit integriertem VTx

A new 20x20mm Fc with an already integrated VTx! Probably the best option for your next lightweight build.

• Processor: STM32F411C
• Sensor: MPU6000
• OSD: AT7456E
• Input voltage: 2S-4S (7-17V)
• Built in 5V 1A BEC
• Supports receiver: PPM/SBUS/DSM2/DSMX/IBUS/CRSF
• Supports ESC: PWM, Multishot, Oneshot, DSHOT, PROSHOT
• Reserved port: power battery input VCC GND; motor drive signal PWM1-PWM4; LED_STRIP; Buzzer
• With LC filter
• Size: 27mm*27mm
• Distance of mounting screw holes: 20mm*20mm
• Inner bore: φ2.5mm
• Weight: 3.2g

F4_SVTX 48CH 25MW VTx
• Power: switchable 25MW
• Channel: 48CH

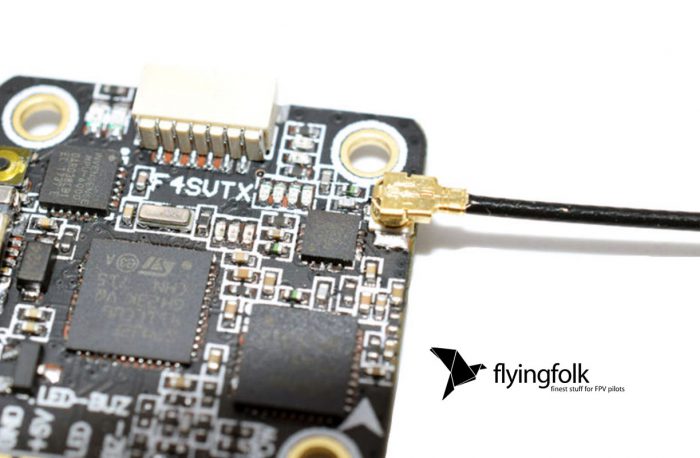

• Antenna port: uFL connector

Lieferumfang

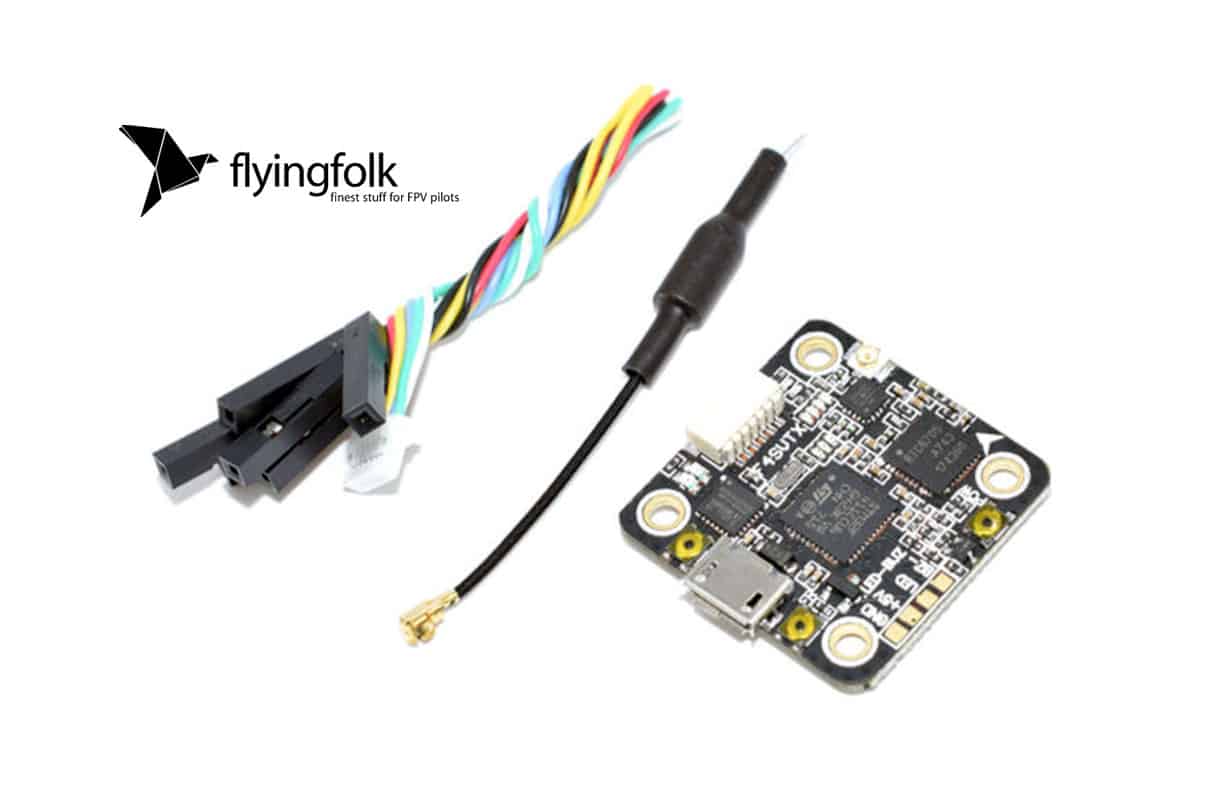

• 1 x F4_SVTx Flugsteuerung MPU 6000 – mit integriertem VTx
