Speedybee Bluetooth-UART Adapter

Speedybee Bluetooth-UART Adapter

Mit diesem tollen Bauteil kannst du deine Copter über dein Smartphone via einer App einstellen. Du findest die selben Einstellung in Betaflight wie an deinem PC. Lediglich Bauteil einbauen und die “SpeedyBee” App laden! (Android & iOS)

Eigenschaften
• Output Power: 0dBm
• Receiver Sensitivity: -94 dBm
• External Interfaces: BROADCAST SWITCH, TX, RX, 3~5V DC Input, GND
• Transmission rate: Bidirectional 1K/S
• Bluetooth Protocol: Bluetooth Specification V4.0 BLE
• Transmission distance: 30m
• Frequency range: 2400 MHZ – 2483.5MHZ(2.4G ISM Band)
• Baud rate: 2400,4800,9600,14400,19200(default),28800,38400,
57600,76800,115200,230400
• Operating Voltage: 3.3V – 5.0V DC
• Working current: 8.3mA~10mA
• Weight: 1.4g
• Dimensions: 27*15*4.5mm

Features
No Bluetooth signal interference during the flight
• Throttle Armed, turn off the Bluetooth-UART Adapter
• Throttle Disarmed, turn on the Bluetooth-UART Adapter

Betaflight Configurator Supported
iOS and Android APP allow you to connect the Flight controller PCB via a mobile device for parameters settings.
• iOS 10.0+ : iPhone4S, iPad 3rd Gen and later
• Android 4.3+

Lieferumfang

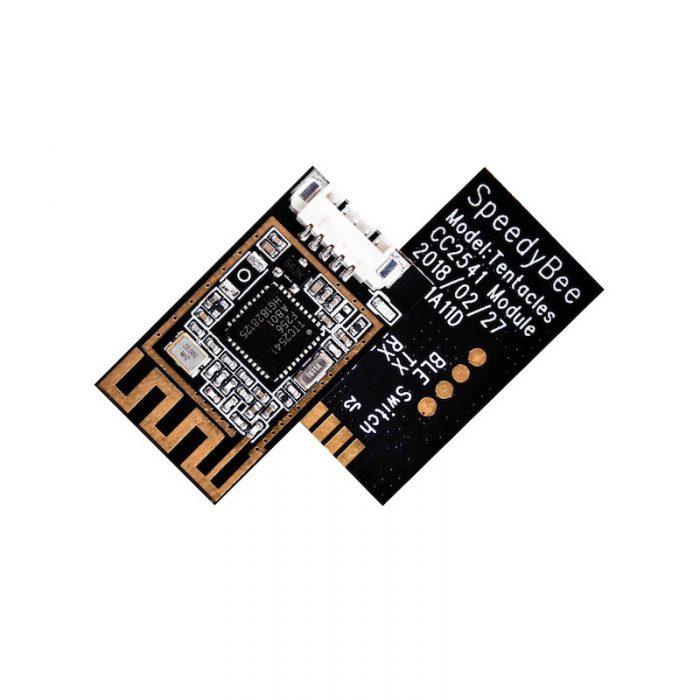

• 1x Bluetooth PCB
• 1x 5PIN Cable
• 1x 3M Double-sided Tapes
• 1x Heat shrink tube
• 1x Manual
